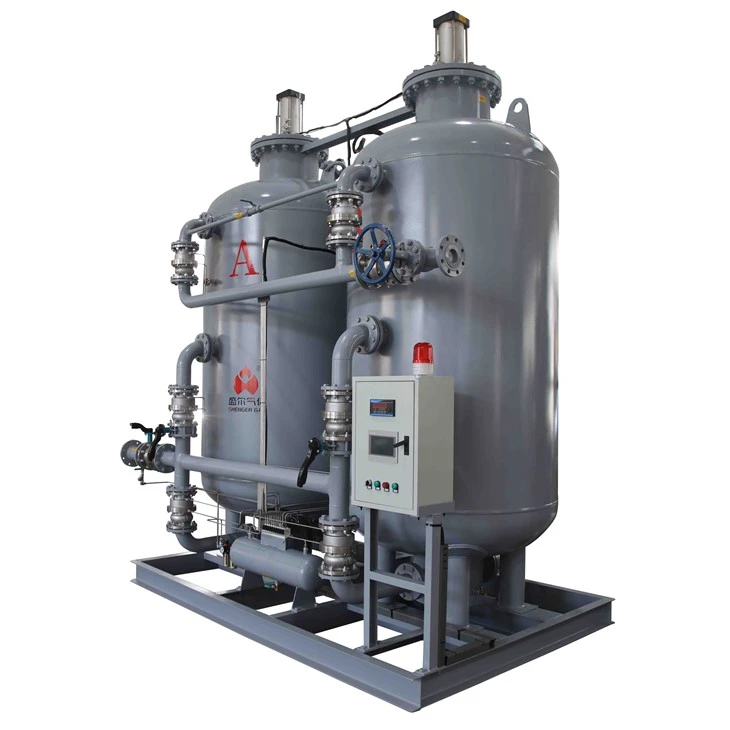

PSA Nitrogen Generator rau Steel Nroj

Hauv kev lag luam steel, ib qho ruaj khov thiab txhim khu kev qha Nitrogen muab tseem ceeb rau Casting, Rauv Kev Tiv Thaiv, thiab Invert Um-qhauj. Cov chaw ua haujlwm roj, noj mus rau hauv tus account cov kev ua haujlwm tshwj xeeb ntawm cov nroj tsuag tshiab, thiab txuas ntxiv mus}- chaw tsim tshuaj rau cov hlau tuam txhab thoob ntiaj teb. Cov tshuaj no pab cov neeg yuav txo cov nqi ntawm cov nqi nitrogen muab thiab txhim kho txhua yam ruaj khov.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Cov nroj tsuag hlau nroj yuav tsum muaj nitrogen tsis tsuas yog hais txog kev ntseeg siab, tab sis kuj tseem nyob hauv kev ntseeg tau tas mus li, yooj yim ntawm kev saib xyuas, thiab tag nrho lub zog hluav taws xob ua tau zoo. PSA nitrogen generator rau cov nroj tsuag hlau ua cov txheej txheem thiab kev tsis txaus siab nyob rau hauv ambient {} {purity} purity nitrogen. Lub kaw lus tau tsim rau ntev -}}}}}}} kev ua haujlwm txuas ntxiv thiab txhim kho cov phiaj xwm hauv cov chaw sib dhos.

Cov Nta Tseem Ceeb:

Kho cov nitrogen purity los ntawm 95% rau 99.999%
Kev Ntau Lawm Ntau Lawm, txij 20 Nm³ / h li 5, 000+ nm³ / h
Kev Rho Tawm Kev Tswjhwm System enabling kev ua haujlwm tsis saib xyuas

Kev cog lus ua kom haum cov ntawv tsim nyog rau chav cog cog hauv tsev, khiav sab nraum zoov; lossis thawv rho nyiaj

Ua haujlwm ua haujlwm: Dual -} pej thuam siab viav vias Adsorption kev voj voog Adsorption

PSA nitrogen generator rau steel nroj ua ke ntawm qhov sib txawv ntawm cov roj av (CMS) rau kev sib txawv hauv cov pa sib cais. Nws lub voj voog ua haujlwm suav nrog cov kauj ruam hauv qab no:

Adsorption: compressed thiab lim huab cua nkag mus rau hauv Tower A, qhov twg oxygen yog adsorbed thaum high {{purogen yog xa los ntawm sab saum toj ntawm cov pej thuam.
Siab sib luag: Yees A thiab B sib luag siab kom txo cov kev siv hluav taws xob thiab txuas ntxiv kev pabcuam lub neej ntawm adsorbent.
Desorption thiab kev tsim dua tshiab: Ntauwd b tshaj tawm cov kab ntawv adsorbed thiab impurities nyob rau hauv cov kev siab siab, ua tiav nws txoj kev ua tiav.
Lub voj voog hloov: Yees A thiab B hloov ntawm Adsorption thiab kev tsim dua tshiab los ua kom muaj kev tsim khoom lag luam nitrogen.

Cov txheej txheem no muaj cov qauv yooj yim, kev ua haujlwm qis, ua rau nws haum tshwj xeeb rau kev tsim cov nroj tsuag ntawm cov hlau.

Cov kev qhia txuj ci kev ua haujlwm thiab kev ua tau zoo ntau yam (cov tsis raug)

Yam	Cov Khoom Nquag Yog
Nitrogen purity	95% -99.999% (Kho tau)
Nitrogen tawm	20-5,000 nm³ / h (customizable raws cov kev ua haujlwm)
Qhov hluav taws xob siab	0.1-0.7 MPA (kev xaiv roj ntxiv muaj rau 1.0-3.0 MPA)
Lwg	-40 Qib rau -70℃(ntawm atmospheric siab)
Oxygen ntsiab lus SUPOMION	Tsawg dua los yog sib npaug rau ± 0.001 (rau high-} purity applications)
Pib -} txog sijhawm	10-15 feeb
Kev Siv Zog	0.20-0.30 kwh / nm³ (nyob ntawm purity thiab siab)
Kev khiav hauj lwm kub	-10 Qib rau 45℃(yeem siab - kub / qis {}} huab cua ib puag ncig cov pob khoom)
Suab nrov	< 75 dB (at 1 meter)

Cov kev ntsuas saum toj no sawv cev yam kev lag luam engineering li cas. Kev ua tau tiag tiag yuav sib txawv raws li qhov chaw sov siab, cov av noo, cov nqi hluav taws xob, thiab cov txheej txheem kev teeb tsa.

Kev teeb tsa thiab cov khoom siv: ua kom ntev - sij hawm ua lag luam tas mus li

Yuav kom tau raws li 24 {-}} teev ua haujlwm txuas ntxiv ua haujlwm ntawm cov nroj tsuag hlau, ib qho chaw nitrogen tiam feem ntau suav nrog cov qauv hauv qab no:

CUA COMPRESSOR: Ntsia Hlau lossis Centrifugal Hom, nruab nrog post - kev ntxuav huv
Cua ua ntej -}}}}}} cov txheej txheem lim dej: precision lim ua ke nrog ib lub tshuab ziab khaub ncaws lossis tshuab ziab khaub ncaws desiccant
PSA Adsorption Tankers: carbon steel lossis stainless hlau siab cov hlab ntsha tau puv nrog siab {{} Lub zog carbon molecular sab cib (cmecular sieve (CMS)
Kev tswj hwm: Plc {- Raws li tsis siv neeg tswj, toutrucreen xyuas, thiab tej thaj chaw deb cov ntaub ntawv interface
Nitrogen Buffer Tank: Stablizes cov hluav taws xob siab thiab txo cov pulsation
Kev Nyab Xeeb System: Kev tiv thaiv siab, oxygen - Cov ntsiab lus xwm txheej ceev, thiab kaw cov ntsiab lus xwm ceev

Tag nrho cov kab ke yog engineered raws li ISO 8573 (PED, thiab CE EMC cov qauv, kom ntseeg tau tias muaj kev ntseeg siab ntev rau kev ua haujlwm.

Muaj daim ntawv thov cov xwm txheej: Nitrogen cov cai yuav tsum muaj cov txheej txheem steelmaking

PSA Nitrogen Generator rau cov nroj tsuag hlau tuaj yeem thov siv thoob plaws ntau cov txheej txheem steelmaking, suav nrog:

Nruam casting cua tiv thaiv
Annealing rauv nitrogen shielding
Inerting tswj rau cov hloov thiab rov ua kom sov dua
Nitrogen sealing, pipeline purging, thiab kev tiv thaiv siab
Hmoov metallurgy thiab ntau yam cua sov-}} kev ua haujlwm
Oxygen sib cais thaum dov, txheej, thiab saum npoo -} cov txheej txheem kho

Cov khoom siv Nitrogen ruaj khov txo cov oxidation, txhim kho cov kev pheej hmoo zoo, txo qis cov nqi cuam tshuam nrog kev yuav khoom noj kua nitrogen.
