Muaj Nitrogen Generator Rau Kev Ua Haujlwm Nruam

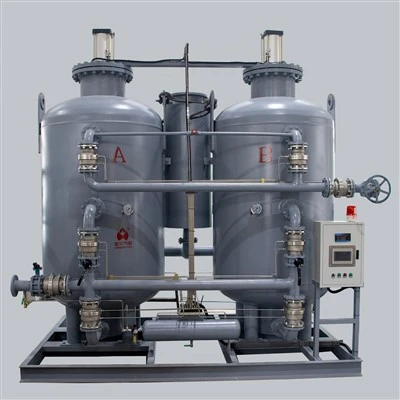

Lub kaw lus yog skid -mounted los yog containerized nitrogen tiam unit raws li mature siab viav vias adsorption (PSA) technology. Nws integrates cua compression, huab cua purification, adsorption sib cais, nitrogen buffering, thiab tsis siv neeg tswj rau hauv ib qho kev sib koom ua ke.
Lub hom phiaj tsim tsis yog luv luv - lub sij hawm tso tawm, tab sis ntev - lub sij hawm ua hauj lwm ruaj khov, kom ntseeg tau tias nitrogen purity, ntws tus nqi, thiab siab nyob twj ywm nyob rau hauv kev tswj kev txwv nyob rau hauv ncua kev khiav hauj lwm cycles. Qhov no ua rau lub tshuab hluav taws xob muaj nitrogen rau kev ua haujlwm tsis tu ncua tshwj xeeb tshaj yog haum rau lub hauv paus -load nitrogen xav tau scenarios.
Txoj Cai Ua Haujlwm
Cov huab cua nyob ib puag ncig yog compressed thiab kho los ntawm ntau -theem cua purification system kom tshem tawm plua plav, roj, dej noo, thiab carbon dioxide. Cov huab cua huv huv ces nkag mus rau hauv cov hlab ntsha adsorption uas muaj siab -kev ua haujlwm carbon molecular sieve (CMS).
Raws li kev tswj xyuas lub voj voog, cov pa oxygen thiab cov kab sib txuas tau xaiv adsorbed, tso cai rau nitrogen kom dhau los ntawm cov khoom siv roj. Lub kaw lus hloov pauv ntawm adsorption thiab rov tsim dua theem, kom ntseeg tau cov khoom tso tawm nitrogen tas li yam tsis muaj kev cuam tshuam.
Cov ntsiab lus tseem ceeb ntawm kev tsim qauv muaj xws li:
- Stable adsorption hloov logic
- Balanced airflow faib thoob plaws adsorbers
- Txo CMS aging nyob rau hauv tas li load
- Optimized purge gas siv kom txo qis zog
Cov xwm txheej no ua kom ntseeg tau tias kev ua tau zoo hauv kev ua haujlwm tas mus li -cov dej num ib puag ncig.
Key Performance Metrics
Peb txoj hauv kev yog cov ntaub ntawv - tsav thiab pob tshab. Txhua lub tshuab hluav taws xob muaj nitrogen rau kev ua haujlwm tas mus li yog tsim los xa tawm ntawm nws cov lus cog tseg. Peb muab cov kev ntsuas tseem ceeb rau kev ntsuas nruj thiab kev sim, lav qhov tiag -kev ua tau zoo hauv ntiaj teb ua tau raws li lossis tshaj peb cov kev qhia tshwj xeeb.
| Yam khoom | Parameter Range | Kev ua haujlwm cuam tshuam |
|---|---|---|
| Nitrogen Purity | 95% rau 99.999% | Ua raws li koj cov txheej txheem tiag tiag -los ntawm inerting thiab pam vov mus rau rhiab daim ntaub ntawv xws li electronics manufacturing- nrog guaranteed stability. |
| Flow Rate Range | 5-2000 Nm³ / h | Scalable tov rau ntau yam kev khiav hauj lwm, los ntawm pilot nroj tsuag mus rau siab - ntim ntau lawm. Modular architecture tso cai rau seamless yav tom ntej expansion. |
| Qhov hluav taws xob siab | 5 mus rau 10 bar g (Customizable) | Cov txheej txheem kev txhawb nqa feem ntau cov cuab yeej thiab cov txheej txheem. Engineered booster configurations muaj rau tshwj xeeb siab -xovxwm xav tau. |
| Dew Point | -40℃rau -70℃PDP | Ua kom cov dej noo-dawb, qhuav nitrogen uas tiv thaiv kev xeb sab hauv, kev tsim dej khov, thiab cov khoom sib kis hauv cov ntawv thov tseem ceeb. |
| Kev siv zog tshwj xeeb | Tsawg dua lossis sib npaug li 0.08 kWh / Nm³ (ntawm 99.5% purity) | Optimized los ntawm hwm-chav kawm ntsia hlau compressors, qib siab PSA lub voj voog tswj, thiab kev tsim qauv ntse kom xa tus nqi qis tshaj ntawm cov tswv cuab ntawm ib chav ntawm nitrogen. |
Cov ntawv thov kev lag luam
Lub tshuab hluav taws xob muaj nitrogen rau kev ua haujlwm tsis tu ncua yog dav siv hauv kev lag luam uas xav tau nitrogen tsis tu ncua thiab cov txheej txheem cuam tshuam tsis tuaj yeem lees txais, suav nrog:
- Steel nroj tsuag (tiv thaiv huab cua, purging, annealing)
- Chemical thiab petrochemical chaw
- Electronics thiab semiconductor ntim
- Kev tsim cov roj teeb lithium
- Kev ntim khoom noj thiab inerting
- Lub zog thiab cov khoom siv tshiab
Nws cov yam ntxwv ruaj khov ua rau nws tsim nyog rau kev sib koom ua ke ncaj qha rau hauv cov kab ntau lawm es tsis ua raws li kev siv hluav taws xob.
Cov qauv, ntawv pov thawj, thiab kev ua raws cai
Kev tsim qauv thiab kev tsim khoom ua raws li kev lees paub thoob ntiaj teb cov qauv kom muaj kev nyab xeeb, kev ntseeg tau, thiab lub neej ua haujlwm ntev:
- ISO 9001 Kev Tswj Xyuas Zoo
- TS EN ISO 8573-1 Compressed Cua Zoo (cov chav kawm cuam tshuam)
- ASME cov qauv rau cov hlab ntsha siab (qhov tsim nyog)
- Kev ua raws li CE muaj rau cov haujlwm xa tawm
Tag nrho cov khoom tseem ceeb raug xaiv raws li qhov ntev - muaj nyob rau lub sijhawm thiab kev saib xyuas.
Customization thiab Kev Pabcuam Kev Pabcuam
Customization xaiv muaj xws li:
- Purity{0}}Flow balance optimization
- Siab - qhov siab lossis siab - qhov ntsuas kub tsim
- Redundancy configurations (N+1)
- Chaw taws teeb saib xyuas thiab cov ntaub ntawv interface
- Kev koom ua ke nrog cov tshuab cua compressed uas twb muaj lawm
Tom qab xa khoom, kev pab txhawb nqa suav nrog cov khoom seem, kev ua kom zoo dua qub, thiab ntev - kev sab laj kev ua haujlwm, txhawb kev ua haujlwm ruaj khov thoob plaws hauv nws lub neej.
Shenger Gas cov cuab yeej tseem mob siab rau kev cog qoob loo sib sib zog nqus thiab kev tsim kho tshiab ntawm kev lag luam roj sib cais tshuab. Txhua lub tshuab hluav taws xob muaj nitrogen rau kev ua haujlwm tas mus li peb xa embodies peb txoj kev nrhiav tsis tu ncua ntawm "Kev ruaj ntseg, kev ua tau zoo, thiab txuag hluav taws xob." Peb tsis yog muag khoom xwb; peb muab sijhawm ntev - tus nqi uas ua kom muaj kev txuas ntxiv ntawm koj cov khoom tsim tau. Cia peb cov kws tshaj lij thiab cov kev pabcuam siab ua rau peb yog koj tus khub ntseeg siab rau kev daws teebmeem roj.
Tiv tauj peb hnub no kom tau txais cov lus qhia tshwj xeeb thiab cov ncauj lus kom ntxaws.
